NEW SE-CENO FILTER

        * PRE-COAT FILTER
        * CONTINEOUS BACK WASHING SAND FILTER

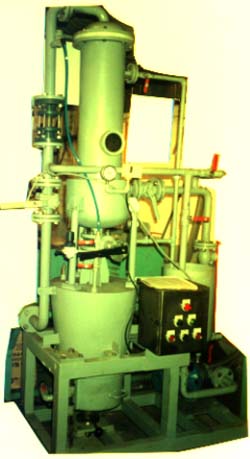

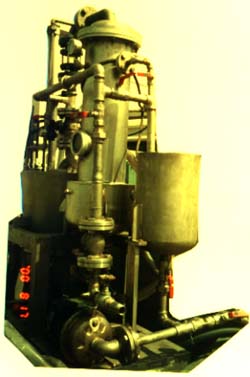

NEW SE-CENO PRE-COAT FILTER
1.Characteristic
    (1). Pre-Coating
        Precoating is accomplished by circulation a slurry of pre-coat
        material on the filter element.
        As pre- coat materials, diatom, cellulose and activated carbon are
        used.

    (2). Filtration
        After pre-coating, waste/dirt water and oil contaminated with
        sludge are filterred passing through the pre-coat filter element by
        feed pump.
        The filterate is filtered to 0.5um fine particle and recycled/reused.


    (3). Filter Back Washing
        If the sludge is filtered and built up on the Pre-coat layer,
        pressure in the filter housing is increased.
        At a certain pressure, fiter element is cleaned out by compressed
        air under back washing cycle.

        And then pre-coating cycle is re-operated and blow downed
        sludge is dryed out and removed as a cake.


    (4.) Filter Element
        Filter element is re-used contineously after back washing without
        changing the element.
    (5). Because all equipment are assembled on the skid, it is easily
        placed at the narrow space.

2. Flow Diagram



A. Filter Housing B. Precoat Material C. Material Drum E. Pump F. Dewatering Drum G. Presure Gauge

V1.  Inlet Valve V2.  Outlet Valve V3.  Precoating Inlet Valve V4.  Precoating Outlet Valve V5.  Butterfly Valve V6.  Back washing Air Valve V7.  Air Vent Valve V8.  Dewatering Air Valve V9.  Dewatering air Vent Valve V10. Flow Control Valve V11. Dewatering Drain Valve V12. Drain Valve

3. Standard Specification/Standard Material/TYPE

    (1). Standard Specification

Model	Flow rate	Filtering net Areat	Filter Housing	Power	Weight	DEMENSION (WXLXH)
SJ-10	5-6m3/Hr	1.0m2	230Ømm	0.75-1.5kW	300Kg	1,180X890X2,180mm
SJ-25	12-15m3/Hr	2.5m2	350Ømm	1.5-2.2kW	500Kg	1,720X1,335X2,470mm
SJ-40	20-23m3/Hr	4.0m2	350Ømm	2.2-3.7kW	600Kg	1,720X1,350X2,900mm


    (2). Standard material
        - SUS
        - Fe + Resin Coation
        - Fe + Rubber Lining
        - FRP
        - P.P
    (3). TYPE
                                                                                                             O Auto    # Manual

TYPE	Operation mode	Filtering	Water Removal	Precoat Material Patin	Cake Removal
Manual	M(MANUAL)	#	#	#	#
Auto	SA(SEMI AUTO)	O	O	#	#
	TA(TECHNICAL AUTO)	O	O	O	#
	FA(FULL AUTO)	O	O	O	O

4. SEQUENCE from pre-coat to back washing

* Contineous Back Washing Sand Filter

        Characteristic
        This filter is a continuous backward up flow, deep-bed granular
        media filter.
        The filter media is continuously cleaned by recycling the sand
        internally through an airlift pipe and sand washer.
        The regenerated sand is redistributed on top of the sand bed
        allowing for a continuous un interrupted flow of filterate and
        backwash water.
