ENVIRONMENT INDUSTRIAL MACHINE |
|
 |
|

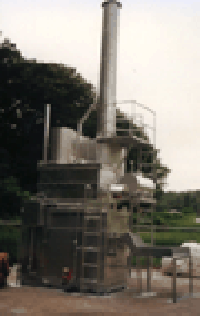

 HOSPITAL WASTE INCINERATOR
|
 |
1. Kinds ＆ Special Quality of Hospital Waste
Kinds |
Special Quality |
Remark |
Blood Bag |
● The chief ingredient of blood bag is P.V.C
1) If contained quantity
is more than 5 percent
- Cl gas have a corrosiveness
So,
the expected life span of a plant is short
- Then, exhaust concentration of Cl₂is more than 10ppm
2) If contained quantity
is less than 5 percent
: Possibility |
|
Human
Particle |
1) Human Particle
: Possibility
2) A dead body(corpus)
: Impossibility |
General
Mixed
Waste |
● If contained quantity of general waste is high
and, fuel is saved |
|
|
|
|
2. Incinerator Type ＆ Structure
2-1. Water Jacket Type Incinerator
 Principle  Characteristic
- It have a high pressure blower
So, complete combustion is possible
- If it make a bonfire of higher calorie waste,
because of complete combustion
concentration of dust smoke is low
- It have a higher dust collection plant,
So, concentration of dust is low.
Type
 Standard
1. Incinerator Body
2. Cyclone
3. Accessory
Option
1. Incinerator Body
2. Cyclone
3. Gas treatment
system(Wet Type)
4. Accessory
Option
1. Incinerator Body
2. Cyclone
3. Dioxin treatment
system
4. Bag Filter
5. Accessory
Efficiency
Standard
1. Can treat dust
of more than 5 (70%)
Option
1. Can treat gas(CI₂,NOx,SOx)
2. Can treat dust(95%)
Option
1. Can treat gas,
dioxin, dust(95%)
Price
Standard :USD$
Option :USD$
Option :USD$
Capacity
30～50Kg/hr
Fuel
Light oil or Natural gas(15  )
Durability
5Years
But,Incinerator body need to replane once a 2.5years
Area ＆ Weight
Standard
1.8mW X2.0mL(3TON)
Option
2.0mW X 4.0mL(4.5TON)
Option
4.0mW X10.0mL(6.5TON)
Remark
1. Price CIF
2. Out of scope=Supervisor Fee,Installation Fee
3.Delivery : 40day
2-2 Refractories Type Incinerator
Principle Characteristic
- This is refractories type, so thermal resistence
and durability is excellent
- It make a bonfire of higher moisture content
waste
Type
Standard
1. Incienrator Body
2. Cyclone
3. Accessory
Option
1. Incinerator Body
2. Cyclone
3. Gas treatment
system(Wet Type)
4. Accessory
Option
1. Incinerator Body
2. Cyclone
3. Dioxin treatment
system
4. Bag Filter
5. Accessory
Efficiency
Standard
1. Can treat dust
of more than 5(70%)
Option
1. Can treat gas(Cl₂,NOx,SOx)
2. Can treat dust(95%)
Option
1. Can treat gas,
dioxin, dust(95%)
Price
Standard :USD$
Option :USD$
Option :USD$
Capacity
30 - 50Kg/hr
Fuel
Light oil or Natural gas(12 )
Durability
6Years
But, Incinerator body need to replace once a 3years
Area ＆ Weight
Standard
2.0mW X2.5mL(4TON)
Option
2.5mW X5.0mL(5.5TON)
Option
4.0mW X12.0mL(7.5TON)
Remark
1. Price CIF
2. Out of scope = Supervisor Fee, Installation
Fee
3. Delivery : 40day
|
|
|
|
|
